Wiring Harnesses
Main RS-422 Communication
Core represents the Kevinbot Core
System represents the main control system
Cable Options

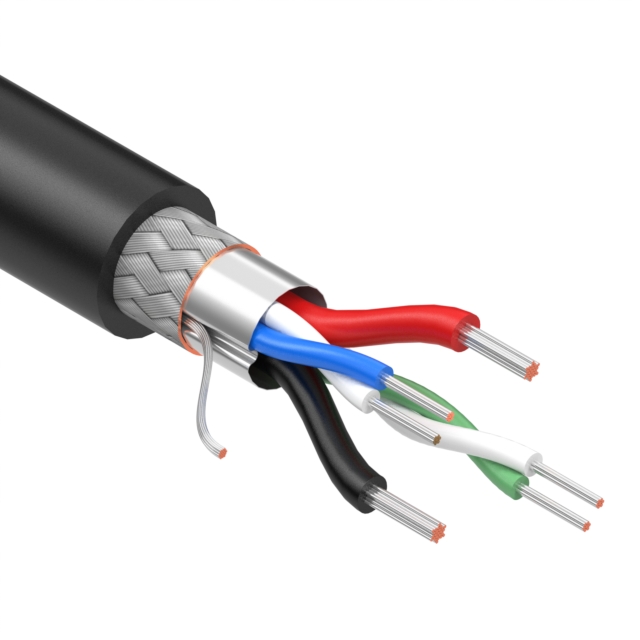

Tensility International Corp 30-02485
The Blue/White Pair corresponds to GN/BU
The Green/White Pair corresponds to YE/OG
The Black and Red Wires are BOTH connected to GND at both ends
The Shield is connected at pin 8 of the System end
